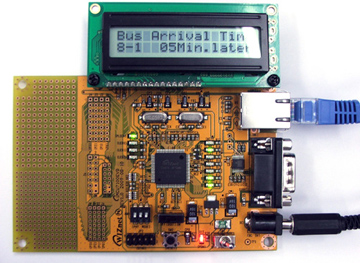

IMCU7100EVB Evaluation Board

Manufacturer: Wiznet

Special design contest pricing!

Feature

Specification

Part	Description	Remark
MCU	Internet Embedded MCU - W7100	8051 compatible
Memory	64KBytes Data Memory 64KBytes Code Memory 2KBytes Boot code Memory 256Bytes Data Flash	Embedded in W7100
Serial	On board RS-232C 1Port with DB9 Connector
Ethernet	On board MAC-Jack (Transformer + RJ-45 Connector)
LCD	16Character * 2Line Character LCD
LED	User Debugging LED 3Ea Network Status LED 8Ea
Button	Reset Switch 1Ea
Debugger	On board Debugger Socket
Expansion Port	MCU port expansion 32Pin (8pin4) 2.54mm Pitch Pin-Header Hole 14Pin (7pin2) 2.54mm Pitch Pin-Header Hole 32Pin (8pin4) 2.00mm Pitch Pin-Header Hole 14Pin (7pin2) 2.00mm Pitch Pin-Header Hole Dummy Hole 167Pin 2.54mm Pitch Dummy Hole 236Pin 2.00mm Pitch Dummy Hole
Power	DC 5V / 2A Adapter
PCB	120mm * 80mm Size
