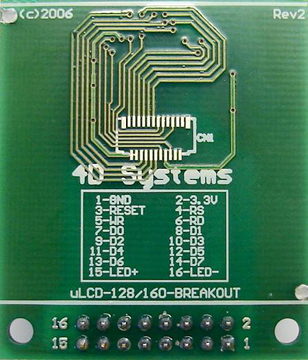

Micro LCD-128 Breakout

Limited quantities, please call.

Product Overview

The μLCD-128-BREAKOUT is a compact and cost effective carrier board for
the 1.5? 128x128 color LCD display (purchased separately). This LCD is the
same display used in the microLCD range of modules. All of the pins are available
via a 16 pin header. The carrier board allows for quick and easy prototyping and
can be interfaced to any 8/16/32 bit host micro. Schematics and sample
initialization code are also available upon purchase.

Main Features

• Carrier Board for the LCD-128 display
• 19 pins surface mount LCD header on board
• 16 pins dual header allowing all LCD signals to be accessed
• DImensions: 39mm x 46mm
• 2.2 to 3.6 Volts supply @ 1mA nominal
• 5 Volts or greater for the White LED backlighting @ 10mA to 70mA
