Micro OLED-96-PROP

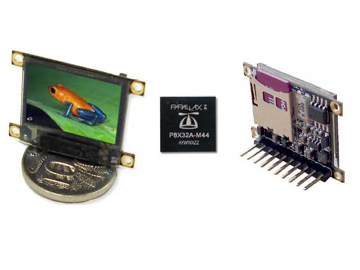

The module represents a unique combination of a powerful micro controller, the Propeller chip from Parallax Inc, a 0.96? 96x64 pixel 65K full color OLED display and a micro-SD memory card socket capable of supporting up to 2GB of storage; all in an incredibly tiny 27mm X 23mm package.

The module is designed to provide your projects with integrated functionality right out of the box.

• Propeller chip based design.
• 96 x 64 pixel resolution, 256 or 65K true to life color OLED screen.
• 0.96" size diagonal OLED display. Module Size: 32.7 x 23 x 5.2mm.
• No backlighting with near 180° viewing angle.
• Low power design. Voltage supply from 3.6V to 6.0V external DC source.
• Simple 5 pin interface provides the programming interface and power to the Propeller chip, the OLED display and the μSD memory card.
• Four General Purpose Propeller I/O pins (plus dedicated Rx and Tx) available for interfacing additional devices.
• A single straight 10 pin male header provides access to power, programming interface and I/O pins.
• Application boards can be piggy-backed via the 10 pin header for an overall very small and low profile design.
• Onboard micro-SD (μSD) memory card adaptor can be used for storing Propeller programs, icons, images, animations, movie clips as well as data logging. 64Mb to 2Gig μSD memory cards can be purchased separately.
• Optional USB to Serial interface via the 4D micro-USB; μUSB-MB5 or μUSB-CE5 modules.
• Compatible with the Propeller Tool IDE for programming and user application development.
• Direct control of display functions using SPIN or Propeller Assembler code.

Demo Code Ver4 (in Spin)
Released on 17 Oct 2007
