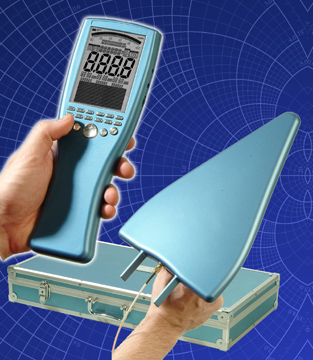

HF-6080 R3 Handheld Spectrum Analyzer

    HF-6080 R3 Handheld Spectrum Analyzer

    Manufacturer: Aaronia

    This version has been superseded by the HF-6085 V4


    • Description
    • Features

    Note:  The Aaronia SPECTRAN HF-6080 model analyzer is sold in two revisions.  This version (R3) features a slightly narrower frequency range and is sold at a deeply discounted price.  To view the version (R4) which provides up to 100x faster sample time,  click here.


    The ultimate 7GHz spectrum analyzer for the measurement professional at an absolutely stunning price. This Aaronia unit can do it all. Vastly extended range up to full ICNIRP (+30dBm*). Ideal for the measurement technician and authorities for measurement of signal sources up to 7GHz and for calculation of ICNIRP exposure limits.  The Revision3 offers a "crystal clear" display without "20MHz aliases" and offers an optional REAL TIME power detector.

    Includes 6080 Analyzer Software 7040 measurement antenna with practical handling, 1m SMA cable, SMA tools. Also includes FREE PC analysis software, special battery for up to 4 hours of operation, battery charger and large aluminum carry case.

    Please note:  This unit includes the following option.

    • Option 204 (8GHz Broadband Peak Power Meter for HF-6080 (X))

      This option expands your SPECTRAN with a Peak Power Meter with full 8GHz of bandwidth. Furthermore it allows exact measurement of signals with high crest factor like those of WLAN technology, and even extremely short signals, like Radar bursts. What's more, measurement is performed in real-time and broadband, while at the same time being temperature-compensated. It is also an perfect solution for measurement of cable attenuation or receiver output. Depending on the actual frequency, the Power Meter provides a sensitivity of up to approx. -50dBm, while the maximum usable level is +10dBm.
