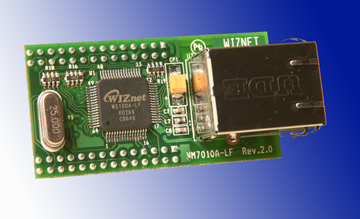

WIZnet Network Module (NM7010A-LF) Rev. 2.0

WIZnet Network Module (NM7010A-LF) Rev. 2.0

Manufacturer: Wiznet

Price: $21.99

Features

  • Plug-in module usable as it is without re-designing schematic of W3100A-LF,PHY chip, Transformer, and RJ45 into target board
  • Rapid evaluation of W3100A-LF with MCU of target board
  • All MCU interface modes of W3100A-LF such as non-clocked, clocked, external-clocked supported
  • Link, 10/100, Collision LED signals available



Architecture TCP / IP W3100
PHY IP101A-LF(Ethernet PHY)
MAG JACK RDA-125BAG1A
Network Interface 10/100 Base-T Ethernet (Auto Detection)
Protocol TCP, UDP, IP, ARP, ICMP, IGMP, PPPoE, MAC
Dimension   25 mm x 52 mm
Connector Type   Two 2 mm x 14 Connectors
Input Voltage   3.3V Internal Operation, 5V Tolerant I/Os
Power Consumption   160mA(3.3V)
Temperature   0 ~ 70℃



TITLE FILE
NM7010A Rev.2.0 Hardware Schematic PDF

NM7010A Datasheet V2.6 PDF

NM7010A-LF Application Schematic PDF




Login to review this product
