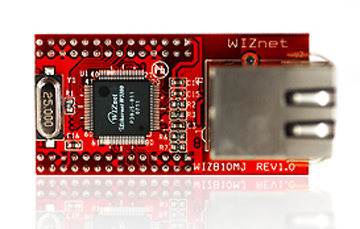

WIZ810MJ Ethernet-SPI/Bus Module (RJ45) 2mm Pitch

WIZ810MJ Ethernet-SPI/Bus Module (RJ45) 2mm Pitch

Manufacturer: Wiznet

Price: $19.50

Features

  • Plug-in Network Module having W5100
  • Useful for Designing Network Interface Parts
  • Support Easy & Quick Hardware Design
  • Usable without H/W design for W5100, transformer and RJ-45
  • Fast evaluation available for W5100 and MCU in the target board
  • Supports MCU BUS ans SPI Interface
  • Supports auto MDI/MDIX (auto detection of crossover)
  • Supports network status indicator LEDs - FDX, TX, RX, LINK, Collision

Comparison Table (WIZ810MJ vs. WIZ811MJ vs. WIZ812MJ)

  WIZ810MJ WIZ811MJ WIZ812MJ
Architecture TCP/IP W5100
PHY Embedded in W5100
Mag Jack RDA-125BAG1A
Interface 10/100 Base-T Ethernet (Auto Detection)
Network Protocol TCP, UDP, IP, ARP, ICMP, IGMP, PPPoE, MAC
Dimension(mm) 52 x 25 x 21
(W x H x D)		 55.5 x 25 x 23.5
(W x H x D)		 55.5 x 25 x 23.5
(W x H x D)

Connector Type
2mm pitch
14 x 2 header
2.54mm pitch
10 x 2 header
2.54mm pitch
10 x 2 header

J2:9 GND
->RX_LED

J2:10 GND
->TX_LED

J2:19 GND
->LINK_LED
PCB Through Hole X

Two PCB Throughhole
(ø3.00mm)

 Four PCB Throughhole
(ø3.00mm)
SPI Signal Pin Shared for SPI
and BUS signals		 Separated for
SPI signals
(SPI_EN controlled by /SCS signal)		 Separated for
SPI signals
(SPI_EN controlled by /SCS signal)
LINK LED When the link is established,
LED is on and flashes at the TX or RX		 When the link is established,
LED is on,
but not flashes
at the TX or RX
Input Voltage 3.3V internal operation and 5V tolerant I/Os
Temperature Operation : 0 ~ 70(Centigrade Degree)
Storage : -40 ~ 85(Centigrade Degree)
Power Consumtion 10/100 baseT max. 185mA (3.3V)

WIZ810MJ Datasheet

WIZ810MJ Schematic
