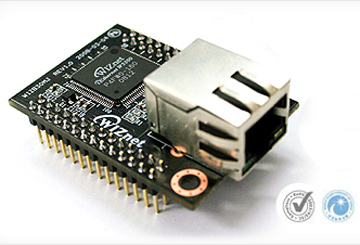

WIZ830MJ - W5300 Ethernet-MCUBus Module (RJ45) 2.54mm Pitch

Manufacturer: Wiznet

Features

-Plug-in Network Module having W5300 & Mag Jack

-Usable without H/W design for W5300, Transformer and RJ-45

-Available of fast evaluation of W5300 and MCU in the target board

-Supports 8 Independent connections simultaneously

-Supports MCU BUS Interface

-Supports 16/8 bit data bus width

-Support Memory to Memory DMA

Specification

Architecture	TCP / IP	W5300
	PHY	Embedded in W5300
	MAG JACK
	Interface	10/100 Base-T Ethernet (Auto Detection
Network	Protocol	TCP, UDP, IP, ARP, ICMP, IGMP, PPPoE, MAC
Dimension		53.3 x 34.0 x 19.5 mm (W x D x H)
Connector Type		2.54 mm pitch 2x14 header pin
Input Voltage		3.3V Internal Operation, 5V Tolerant I/Os
Power Consumption
Temperature
