W5300E01-ARM Cross Compiler

W5300E01-ARM Cross Compiler

Manufacturer: Wiznet

Price: $195.00

Feature
  • Quick Test of W5300

  • Data Transfer over 50Mbps with Samsung S3C2410A-200

  • Support Various Interfaces : Serial, Ethernet, USB Host & Device

  • OS : Linux

  • 64M SDRAM for operating various applications

Specification


Item

Category

Description

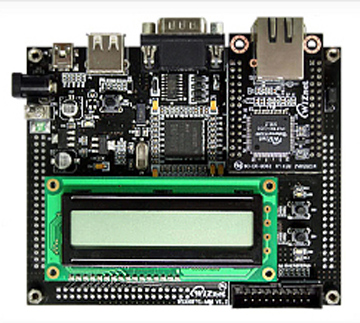

W5300E01-ARM
Base Boar

MCU

200MHz Samsung S3C2410A ARM RISC Processor

RAM SDRAM 64MB
ROM NAND Flash 64MB

Serial

RS-232C 1 Port

USB Host

USB Host 1port

Ethernet

WIZ830MJ Module

LCD

16 Character * 2 Line Character LCD Port
(C-LCD Option

LED 2 LEDs for Debugging
Button 2 Tact Switches for Debugging
JTAG On board JTAG Connector
Module Connector 56 Pin (28Pin * 2) 2.54 mm Pitch Pin-Header Socket
Extension
Port

120 Pin (40pin * 3) 2.54 mm Pitch Pin-Header Port

Power

DC 5V / 2A Adapter

PCB

118mm X 97mm Size

WIZ830MJ

TCP/IP W5300
RJ-45





W5300 Linux Driver Porting Guide V1.0


W5300E01-ARM wiz-u-boot V1.1.0


W5300 Linux Driver V1.1


W5300E01-ARM Cross Compiler Manual


W5300E01-ARM Loopback test source


W5300E01-ARM Linux driver


W5300E01-ARM Linux Image files


W5300E01-ARM Linux Bootloader source


W5300E01-ARM Parts List V1.0


W5300E01-ARM Schemetic V1.0


W5300E01-ARM User's Manual V1.0
