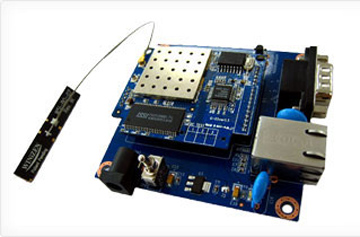

WIZ600Wi 802.11 b/g Ethernet-LAN Eval Kit
Manufacturer: Wiznet
Price: $149.00
Features
- Stand-alone typed 802.11b/g wireless LAN module
- Ethernet to Wireless Bridging : Enableing wired network device to have
wireless communication interface
- Supports Serial Interface for "Serial to Wireless" application
- Supports AP/Station/Repeater mode
- Max.33Mbps Real Data Streaming
- Full-Featured Network Protocol Stack
- Built-in Web server for configuration via standard web browser
- Supports Multiple SSID and VLAN
|
Item |
Specification |
|
Operation Mode |
IEEE802.11b/g
Access Point, Repeater, Client-bridge mode supported |
|
Wireless |
Radio Enable/Disable, SSID Hidden, Multi SSID, Auto
Channel Select,
Rate Control (Include Auto mode), TX Power
Control, Fragment Length, RTS/CTS Length, Short & Long Preamble, Super
A/g Adaptive Radio, Beacon Interval, DTIM Period |
|
Security |
WPA, WPA2.0(with Radius Server or Pre-Shared Key),
AES and/or TKIP,
Unicast Encryption: 802.1x Authentication, WEP Encryption, Packet
Filtering, MAC Address Filtering/Limiting,
(NetBIOS/NetBEUI Filtering, DHCP Filtering) |
|
Network |
Port Forwarding (UDP, TCP or Both Protocol Support),
DHCP Client/Server/Relay WDS(Wireless Distribution System) Supported,
NAT, DNS Server Setting LAN: IP, Subnet, Gateway,
WAN: IP, Subnet, Gateway, VLAN |
|
Management |
Administrator ID/PWD, Device Name, Station & AP Assoc
Information,
System Information, SNMPv1/v2 (MIB-II, ieee802dot11), Telnet Server
Support Web-based Configuration(한글 UI), Upgrade through HTTP/TFTP
Event Log (WEB Interface), RS232 Console Support |
|
Item |
Specification |
|
Standard |
IEEE 802.11b/g, IEEE802.3 10/100Mbps Ethernet |
|
Modulation |
DBPSK, DQPSK, CCK, OFDM |
|
Frequency |
2.400~2.483 GHz |
|
Available
Spectrum |
83.5 MHz |
|
Channels |
13ch (1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13) |
|
Data Rate
(Mbps) |
1,2,5.5,11, 6,9,12,18,24,36,48,54 |
|
Out Power |
18 dBm |
|
Sensitivity |
1M: -94dBm, 54M: -68dBm |
|
Operating
Range |
Indoor: 100 m, Outdoor: 400m |
|
Interface |
Ethernet 10/100 1 Port, UART, Factory Reset ,
Wireless Link/Activity LED,
Ethernet Link LED, Two Antenna Port (Rx Diversity) |
|
Power |
PoE TYPE (48V 0.4A) |
|
Power
(Internal) |
3.3V, 2.85V, 1.8V |
|
Temperature
Range |
Storage: -20°C ~ +65°C
Operating: -0°C ~ +55°C |
|
Humidity |
10% ~ 90% (Non-Condensing) |
Downloads
WIZ600Wi PHY-to-PHY reference schematic with
W5100
WIZ600Wi Baseboard Hardware Schematic
WIZ600Wi Firmware
WIZ600Wi Baseboard Part list
WIZ600Wi User's Manual V1.0
