WINI2C/PCI - Windows-interface I2C control for PCI90/93

Manufacturer: Calibre

Price: $249.00

WINI2C/PCI - I2C-Bus Application Software for PCI90 & PCI93LV

WinI2Cpci is Calibre's Windows I2C application for your PCI90 or PCI93LV Communications Adapter. This application is designed to 'quick-start' new comers to I2C whilst providing the more experienced user with a set of very useful tools. Versions for 95/98/NT4/2000 and XP are included.

Features

• True I2C compatibility
• Easy I2C adapter configuration
• On screen display of all configuration parameters
• 8 I2C functions including master & slave protocols and real-time bus monitor
• 3 selected data formats (Hexadecimal, Decimal and Binary)
• Text based data files with transfer parameters and optional user comments
• Full on line help and a comprehensive user manual

The following I2C functions are supported:

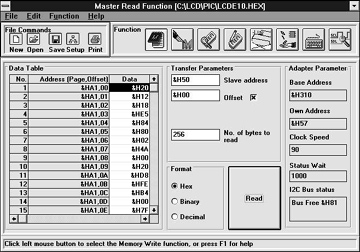

1.	Master (the adapter located in the PC) reading from a Slave (located elsewhere)
2.	Master (the adapter located in the PC) writing to Slave (located elsewhere)
3.	Memory read - the adapter located in the PC is a master and reads the entire contents of the I2C memory.
4.	Memory write - the adapter located in the PC is a master and writes data to the complete I2C memory.
5.	Slave (the adapter located in the PC) being read by a Master (located elsewhere)
6.	Slave (the adapter located in the PC) being written to by a Master (located elsewhere)
7.	Teletype - the adapter located in the PC is a master and writes each byte of data to the slave as it is typed in.
8.	Real-time bus monitor – captures I2C transfers and stores on disc for diagnosis and debugging of experimental systems

Note: PCI90, PCI93LV and WINI2C/PCI support I2C-Bus up to 90KHz as a master and 100KHz as a slave or a monitor. For support up to 400KHz, UCA93LV and WINI2C/UCA should be used.

Downloads for this Product

		Datasheet for the WINI2C/PCI.

		WINI2C/PCI update for large memory compatibility. Requires original license unlock code to install. W2K version.

		WINI2C/PCI update for large memory compatibility. Requires original license unlock code to install. WinXP version.
