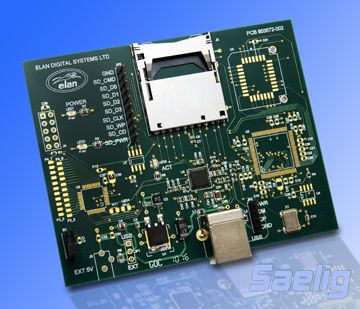

VUB300 Evaluation Board

Manufacturer: Elan DIGITAL Systems

Price: $136.50

The VUB Evaluation Board offers the same functionality as VUB300 IC in a multi-chip solution, and is highly recommended when commencing VUB300 development. VUB Evaluation Board is built around two ASICs, with the firmware mask an external flash memory, emulating VUB300 chip behavior. Please refer to the VUB300 data sheet for the VUB300 chip characteristics.

There are 3 LEDs on the board for power and activity indication.

POWER LED - On when USB Power is supplied.
SD POWER - On when power to the SD/SDIO card supplied.
ACT - On when driver commands are being processed.

VUB300 Evaluation Board is USB powered, but can be modified to run from an external 3.3V source.

VUB300 SDIO host controller drivers are supported on the following operating systems:

Linux
Windows 2000
Windows XP
Windows Vista 32
Windows Vista 64
Windows 7
Windows Mobile/PocketPC/CE*
Apple MAC OSX*

Linux

This driver currently exists only as a Linux kernel external module that has been tested against some 2.6.29, 2.6.30, 2.6.31 and 2.6.32 kernels.

Windows

As supplied, VUB300 Evaluation Board is USB-powered. When the board is powered up for the first time Windows operating system should bring up Found New Hardware Wizard.

VUB300 appears in the Device Manager under Secure Digital host controllers.
