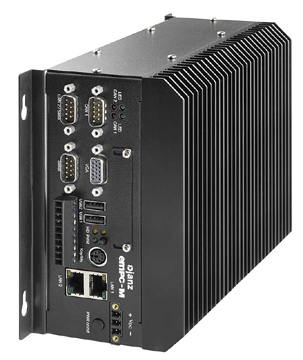

CANatomBOX Fanless, Flexible Windows-based CANbus Controller

CANatomBOX™ – based on Janz AG’s emPC-MN270™ Series – is a versatile, compact embedded control system particularly suited to embedded CANbus control applications.

Technical Details:

Processor

• Intel Atom N270 with 1.6 GHz; optional version with 1.1 GHz
• 512 kB L2 cache
• 533 MHz FSB

Memory

• up to 2 GB DDR2 SO-DIMM, (512 MB is standard)

Interfaces

• two 10/100/1000 MBit/s Ethernet
• two USB (v2.0), with 500mA capability
• 1 x SJA 1000 CAN controller
• 1 x RS232 serial port

Power Supply

• power input 9..32V_DC, power consumption max. 12W

Physical

• dimensions incl. wall mounting pads (w x h x d):
  0 PCI slot version, 3.7" x 6.3" x 9"
  2 PCI slot version, 5.7" x 6.3" x 9"
• weight approx. 4.9 kg (10,8 lb)

Supported Operating Systems

• Windows XP, XPembedded, Vista, Windows CE 5.0/6.0, Linux

Description:

Using high-reliability components, a wide variety of hardware and software options are available in the tiny Intel x86 based CANatomBOX™. 512 MB DDR2 SO-DIMM is sufficient to control Windows XPTM or Windows XPembeddedTM operating systems, while 2 GB industrial grade CompactFlash card storage can easily be upgraded. Power consumption is low, so reliable cooling is completely passive. Wall-mounted, CANatomBOX™ can be placed almost anywhere, even in the tightest locations. With standard interfaces of two 10/100BaseT Ethernet, two USB2.0, one RS232, VGA and two CANbus, this versatile controller system has remarkably small dimensions. Alternatively, CANatomBOX™ is available with two additional PCI slots, for further standardized expansion boards. The widely-used operating system Windows XP or XPembedded comes standard, while other choices are possible and can be selected to perfectly match customer needs. Every CANatomBOX™ system is 100% tested and is customizable even in small quantities, with a guaranteed lifetime availability of 5 years – essential for medical and military equipment design. A wide range of operating systems is offered, with design-team hardware and software support. If required, customer-specific software can be preloaded.
