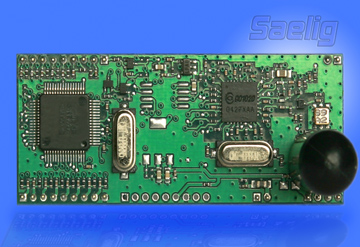

Socket Radio (CC-900W-CAR)

SOCKET RADIO

The Socket Radio™ is a compact, integrated 33K baud Socket Modem™compatible wireless modem. The modem supports serial host communications via flexible internal UART or parallel connection through parallel port. The modem conforms to the industry standard Socket Modem™ mechanical and interface specifications.Because of its built-in features and flexibility, many applications and OEM products can be created using the SocketRadio.This modem features a multi-point network protocol with error detection and correction. The host connection and form factor are compatible with the CCI World Modem™, making existing Socket Modem™ designs more flexible by allowing designers to have both wire line and wireless versions of their product without designing new hardware.The small size, low power consumption and upgradeability make the Socket Radio a perfect fit for many embedded applications.

Features

• 902 - 928 MHz ISM band wireless modem
• Up to 33.6K baud
• Programmable RF data rate
• 500 foot range
• 10 programmable IO pins local or remote control
• FCC 15.249 compliant
• Point-to-point or point-to-multipoint communications
• Automatic channel selection
• Automatic error detect-and-correct
• RF connector or integrated antenna option
• AT command set
• World Modem™ compatible
• Small Footprint - 1.05" X 2.54"

Documentation

CC-900W Data Sheet

CC-900W Evaluation Kit User's Guide
