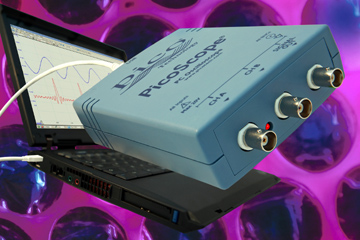

PICO PS2205 2-ch 8-bit 25 MHz USB Scope Adapter (PP420)

Convenience and speed

The PicoScope 2200 range of USB oscilloscopes obtain their power from the USB 2.0 interface, so there's no need for batteries or an external power supply. The USB port also delivers high-speed data to your PC to give you a responsive, high-resolution display.

Sophisticated oscilloscope software

Unlike other low-cost oscilloscopes that may be supplied with software that has limited functionality, the PicoScope 2200 range of USB oscilloscopes are supplied with the same PicoScope 6 software for Windows that comes with our high-end scopes. This gives you the same software features and functions that are available for scopes costing a lot more money, and should you wish to upgrade to a higher-spec scope in the future you will be able to do so seamlessly.

PicoScope 6 is powerful yet easy to operate. Users benefit from the power of the PC, and the familiar Windows interface and controls, making the software easy to learn and easy to use on a daily basis. Data can be saved in a variety of formats including CSV text, PNG and BMP images and MATLAB binary files. Drivers and examples are included for LabVIEW, C/C++, Delphi and Visual Basic for integration into custom applications.

PicoScope software is regularly updated with feature extensions and improvements. These can be downloaded for free from our website and ensure that your oscilloscope will always have the latest features and enhancements " all without costing you another penny.

Spectrum analyzer

With the click of a button in PicoScope you can change from the time domain to the frequency domain and use your PicoScope oscilloscope as a spectrum analyzer. A full range of settings give you control over the number of spectrum bands, window types and display modes.

Signal generator and arbitrary waveform generator

All PicoScopes in the 2200 ultra-compact oscilloscope range feature a built in signal generator output. This can generate standard waveforms from a library of stored waveforms. You can also define your own waveforms using the power of the built in arbitrary waveform generator (AWG).

Everything you need at a price that can't be beaten

PicoScope 2200 ultra-compact oscilloscopes offer amazing features and performance at a price that makes them ideal for everyone from hobbyists and field service engineers to educational and professional users. Their small, but robust design means you really can take them anywhere. No need to worry about power supplies or batteries. The familiar Windows interface and controls make the software easy to learn and operate, and convenient for everyday use. While the free software updates ensure you will always get the latest features and enhancements from your PicoScope.

With a dual-channel PC Oscilloscope, spectrum analyzer, signal generator, waveform generator and data logger all in one inexpensive package the palm-sized PicoScope 2200 range gives you everything you need at a price that can't be beaten.
