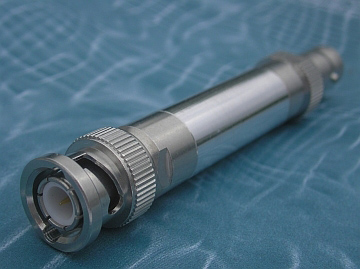

Attenuator-40dB 2.2GHz, 1W

Price: $40.00

Frequency Range:	DC - 2200 MHz
Impedance:	50 Ohms nominal
Attenuation Value:	1 - 40 dB available
Attenuation Accuracy:	± 0.5 dB maximum (1-20 dB)
Attenuation Accuracy:	± 0.75 dB maximum (21-40 dB)
VSWR:	DC - 1000 MHz 1.3:1 maximum
VSWR:	1000 - 2200 MHz 1.4:1 maximum
Power Input:	1 Watt average
RF Connectors:	BNC Male / Female
Operating Temperature Range:	- 55°C to +100°C
Outline Drawing:	MED - 0107 (1-20 dB)
Outline Drawing:	MED - 0225 (21-40 dB)
	*Insert desired attenuation value
	( example: 3 dB = 003 )
