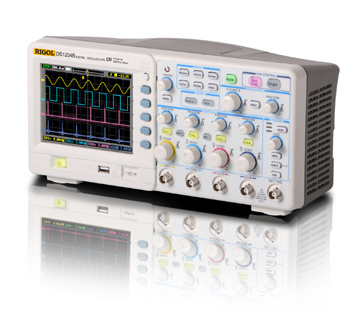

DS1064B 60 MHz 4-Channel Digital Oscilloscope

Manufacturer: Rigol Technologies

Rigol Free Shipping and Education Discount promotion

Calibration certificate included.

Model	DS1064B	DS1104B	DS1204B
Channels	4 channels { external trigger
Bandwidth	60MHz	100MHz	200MHz
Real-time Sample Rate	2 GSa/s (half channel*),1 GSa/s (each channel)
Equivalent-time Sample Rate	10 GSa/s	25 GSa/s	50 GSa/s
Memory Depth	16 kpts (half channel), 8 kpts (each channel)

*“half channel” means only one channel from CH1 and CH2 can be choosen or from CH3 and CH4

**Rigol oscilloscopes carry a 3 year limited warranty.

Advanced Features

4 analog channels
2 GSa/s Real-time Sample Rate and 50 GSa/s Equivalent-time Sample Rate
Memory Depth: 10 kpts (half channel), 5 kpts (each channel)
22 Automatic Measurements
5.7” TFT QVGA (320×240) with 64K color LED backlight display with power save mode
Advanced trigger modes including Edge, Video, Pulse Width, Alternate and Pattern trigger across 4 analog channels
Adjustable trigger sensitivity: Effectively filter noise from trigger signal and avoid false trigger
Built-in USB Host and USB Device to support USB flash drive, PictBridge printers and direct system upgrades
LXI Class C certified LAN Ethernet connectivity standard
Backlight Keys, Intuitive user interface, Menuand in-scope help available in Chinese and English

Advanced Performance

4 Channels - 4 analog signal input channels makes multi-channel signals test easy
Pattern Trigger - Triggers on any combination of events across all 4 analog channels
LXI Class C compliant - Easily achieve system integration and distributed measurement
PictBridge Certified - Support pictbridge printer

Advanced Performance

Adjustable Trigger Sensitivity - The ability to filter noise from the signal avoids false triggers
Alternate Trigger - Provides a true dual timebase display
FFT - Provide spectrum analysis function for users
PASS/FAIL - Set standard for production line to increase the efficiency of test

Easy to Use Features

Independent Channel Control - 4 analog channel with independent vertical control
Built-in Help System - Dedicated Help button to access Built-in help system
Auto Measure Button - To turn on selected general measurements directly print the screen or save the waveforms locally or to the USB flash drive via USB Host port
Easy Select Trigger Mode - To easily switch the trigger modes

Standard Accessories

Optional Accessories

Standard Characteristics

Model		DS1204B	DS1104B	DS1064B
Bandwidth		200 MHz	100 MHz	60 MHz
Memory Depth		16 kpts (half channelj, 8 kpts (each channelj
Channels		4 channels { external trigger
Real-time Sample Rate		2 GSa/s (half channelj, 1 GSa/s each channelj
Equivalent-time Sample Rate		50 GSa/s	25 GSa/s	10 GSa/s
Rise Time		1.8 ns	3.5 ns	5.8 ns
Input Impedance		1 MΩ\|\|18 pF
Timebase Range		1 ns/div ~ 50 s/div	2 ns/div ~ 50 s/div	5 ns/div ~ 50 s/div
Trigger modes	Edge, Video, Pulse Width, Alternate, pattern trigger across 4 analog channels
Vertical Sensitivity	2 mV/div ~ 10 V/div
Vertical Resolution	8 bits
Maximum Input Voltage	All Inputs 1MΩ\|\|18pF 300Vrms Max CAT I
Cursor Measurement	Manual, Track and Auto Measure modes.
Automatic Measurements	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay A→B, Time Delay A→B, Phase Delay A→B,- Phase Delay A→B
Math	{, \|, ×, FFT
Internal Storage	10 waveforms, 10 setups
USB Storage	8 bits BMP, 24 bits BMP, PNG,CSV,Waveforms and Setups against USB flash drive’s limit
Connectivity	USB Device, dual USB Host, LXI-C compliant LAN
Display	5.7” TFT QVGA(320×240) with 64K color LED backlight display
Power Supply	AC:100-127V,45Hz-440Hz;100-240V,45Hz-65Hz. 60VA Max
