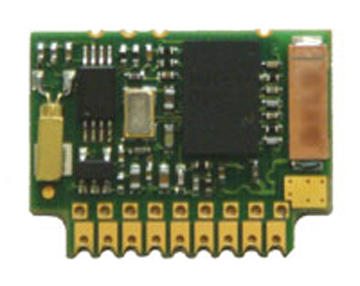

ARF32 Audio - Bluetooth V2 Class 2 with Codec

These are non-stocked special order items.  First order MUST include starter kit.Please allow 0-2 weeks for delivery

Class 2 Bluetooth® module for Audio transmission (ARF7208A)

• Available in data - digital data&audio - analogic data&audio versions
• Class 2 Bluetooth®
• Frequency on the free wavebands 2.4 " 2.5GHz
• Totally complies with the Bluetooth® V2 standard*
• Radio rate up to 723 kbps
• Serial link rate: up to 921.6 kbps
• Integrated miniature antenna on the PCB
• On-board SPP profile totally compatible with the PDA, portable PC and Bluetooth® GSM
• Audio profiles : HFP Hands free - HSP Headset - HSAG Audio Gateway
• CODEC audio integrated on the PCB (13-bit PCM CODEC) / analog version
• The modules are Bluetooth certified as 'End Product', meaning customers can refer to Bluetooth Brand Name and use Bluetooth logo without paying any fees


Applications needing short range audio communication

• Cars
• Headphones
• Hands free & Headset
• etc.

Data Sheet
