  • LD400



    Manufacturer: Sensor Technology

    Call for pricing or request a quote


    Please note that all  products are custom ordered due to the large number of variations.  Please contact a Saelig Technical Support representative for details.

     LoadSense™ - an intelligent load sensor that can be integrated with a crane hook, fork lift or other handling device for intelligent feedback of loading events. It has an on-board single-chip computer for recording, analyzing and archiving readings, and wireless communications to transfer data in real time to a host computer.  LoadSense provides the real-time information needed to optimize efficiency and increase profitability in a wide range of industrial operations, allowing weight measurement processes to be easily integrated with handling operations. All live data is captured in real time and can be transferred to a database, stored, totaled and analyzed on-the-spot.

    Internal battery-power makes LoadSense’s operation completely autonomous, so it can be deployed with minimal disruption to operations – and with no trailing, dangerous wires. LoadSense automatically begins transmitting data when used, and no special training is required to install or operate the unit.

    The LoadSense system consists of an intelligent load sensor, a hand-held display and a receiver. The load sensor, with a standard calibration range 1-10 tonnes, is based on proven strain gauge technology (other ranges available on request).  The transmitter operates on globally-accepted 2.4GHz - it does not require a license to operate - and uses advanced data-secure technologies to enable information to be sent and received error free. Accurate load data is thus sent to the handheld display, providing instant and accurate load measurement information. The load cell also provides data logging and storage capabilities for subsequent downloading into a PC. Alternatively the load cell can communicate directly to a PC via the handheld receiver interface.

    Applications include: materials handling and warehouse operations, where the intelligence will convert raw data into instant stock counts; raising nuclear fuels rods; monitoring window cleaning cradles on high rise buildings; and winching and weighing building materials; assessing helicopter loads, etc.   How much material has been transported? How to weigh and dispense two or more materials simultaneously which need to be accounted individually?  All these problems and more can be solved with LoadSense.

    Using LoadSense with a tractor-mounted winch enables an accurate assessment of roadside trees for susceptibility to catastrophic wind damage. LoadSense can be configured to monitor and control flow of liquids too. It can be wirelessly integrated into a SCADA or manufacturing control system, enabling instant operating reports and even customer billing.  Operating safety is also improved by removing operators from dangerous locations.

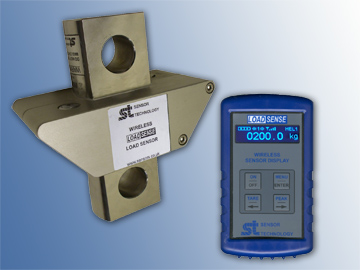

    Handheld Receiver LoadSense Cabin Display Handheld Receiver LoadView Software
    The LoadSense wireless Handheld Receiver provides an easy way to receive & view data from up to 9 different transducers. The unit can also be connected to a PC via RS232/RS422 or USB. The LoadSense Cabin Display is a small, lightweight, cabin / window mounted unit, used in conjunction with our LoadSense Wireless Load Sensors to display the current reading. The LoadSense Receiver Interface is used for receiving & converting data from the LoadSense transducer into analog or digital outputs for integration into any data collection syste LoadView is an easy to use load monitoring software used in conjunction with our readouts, available to provide a flexible display, real time plotting and data recording facility.
