Packet-Master USB12 USB1.1 Development Tool

Special limited time offer!
A package of 5 Class Analysis Options (worth USD $595) included free of charge!
Classes included: Hub, HID, Mass Storage, Printer and Vendor

Overview

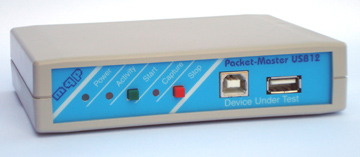

The Packet-Master USB12 is a Hardware USB Bus Analyzer, intended for development of Low and Full Speed USB devices and hubs etc. It is accompanied by our Windows application GraphicUSB for capturing and displaying every detail of the data interactions on a USB link.

Hardware Features

• Power Indicator
• Activity indicator shows presence of data exchanges
• Integral Capture Start and Stop buttons and Capture Indicator
• USB through-connectors for device under test
• Analyses Low Speed, Full Speed or a mixture of both
• Economically priced
• Fully Lead Free and RoHS compliant

Software Features

• Capture controlled from USB12 unit or from Application
• Captured document shows every detail of data transactions graphically for a fuller understanding of the USB protocol. This includes a detailed visual analysis of each packet.
• Filters allow less significant information to be removed from the display to allow you to concentrate on the critical data
• Each event is analyzed in detail, with any significant features explained, and possible errors or warnings highlighted.
• Data pane shows the data content of any packet
• Events display can be printed.
• Export Captured Events as text files
• Export Data as source code bytes, or binary file format
• Export descriptors as source code
• Software up-grades are free of charge from our web site.
• Software can be freely used as a viewer in the absence of the Analyzer Hardware

Quick and easy with self-installing software.

System Requirements (for supporting Packet-Master USB12)

• PC with High Speed USB port should be dedicated to the capturing. (Actual target device should be connected to a different Host to ensure reliable capture bandwidth)
• Windows XP or Windows 2000.
• 256MB RAM
• 100MB space on Hard Disk

Physical Specifications

Electrical Requirements

The Packet-Master USB12 normally derives its power from the Host computer's USB connection.

Safety

• Manufactured to meet the following safety standards: VDE0805, IEC950:1986, EN60950 and BS7002.
• CE compliant.

Standard Accessories

Packet-Master USB12 comes complete with the following:

• Graphic USB control software on CD
• High Speed USB cable
• Manual on CD

Optional Accessories

• Feature Connector Terminating Board
• External Power Supply

System Requirements

• Any IBM PC/AT/286/386/486/Pentium or compatible
• CD ROM / DVD Drive
• Hard Disk Drive
• High-Speed USB Port (Or Full-Speed with data rate restriction)
• Windows 98SE / ME / 2000 / XP

Note: A good performance machine is recommended for good capture rate
