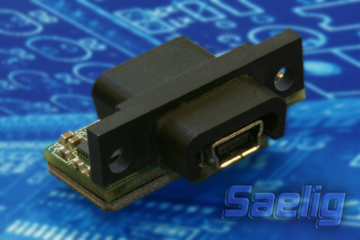

CE-USB DB9 USB-Serial Converter

The CE-USB is a full speed USB 2.0B to RS-232 adapter.  It is designed to replace a standard right angle MALE DB9 connector.  The molded enclosure forms to the same specifications of standard DB9 connectors.  The CC-USB232 is a cost and time effective way to upgrade legacy equipment to USB. CE-USB is a cost and time effective features.

With the CE-USB you won't have to write any host or target drivers.  Just install the PC drivers and talk to your device as if it were still on the RS-232 line.  Current drivers are available for Windows, Mac and Linux.

Features

• Drop in replacement for most right angle DB9 connectors
• USB Powered (no target power required)
• Replaces AMP Right angle DB9 (or equivalent)
• Supports baud rates from 300 bps to 1 Mbps
• All RS-232 signals available
• 576 byte receive buffer / 640 byte transmit buffer
• Hardware and X-ON/X-OFF handshaking supported
• Windows, Linux and Mac device drivers available

Documentation

  Data Sheet CE-USB

  Application Example

Drivers

VCP Driver for Windows 2000/XP/Server 2003/Vista

VCP Driver for WinCE 6.0

VCP Driver for WinCE 5.0

VCP Drivers for Windows Mobile 6.0

VCP Driver for Macintosh OSX

VCP Driver for Linux 2.6.x and 2.4.36
