Berkeley Nucleonics Model 577 Digital Delay / Pulse Generator

    Berkeley Nucleonics Model 577 Digital Delay / Pulse Generator

    Manufacturer: Berkeley Nucleonics Corporation

    This product is no longer available at Saelig.


    • Description
    • Features
    • Specifications
    • Downloads

    The Model 577 digital delay generator provides multi-channel 250 ps-resolution timing, delaying, gating, pulsing, and synchronizing functions at an attractive price. In addition to the traditional digital delay and pulse generator modes, there are many practical modes of operation and features. For usefulness and value, there is nothing comparable.

    Each channel provides both delays and widths – a 4-channel Model 577 provides the same delay and width functionality of competitive 8-channel units. The Model 577 is available in 4 and 8 channel configurations, with optional Ethernet and GPIB communication, High Voltage and Optical outputs, optical inputs for trigger and gate and Dual Input Trigger options for both optical or electrical inputs.

    This Digital Delay/Pulse Generator, representing our finest in precision timing, provides precise delays and widths with 250 ps resolution for times up to 1000 seconds. Low jitter, with both internal clocks (50 ps) and using an external trigger (800 ps) gives users the timing needed to control many devices. This is particularly useful where several pulses or gate signals need to be delayed and timed with respect to each other or with a common trigger. You may even use one channel as a trigger reference for other channels, locking the timing delays when needed. There is much to learn about the Model 577, which offers much more, including a clock-divider, independent channel triggering, independent amplitudes/channel, delay and width control, and a LabVIEW 8 driver.

    New Features in the Model 577:

    Selectable Clock Reference

    The Model 577 offers additional inputs and outputs for external clock syncing. Specify your input / output reference frequency (10MHz to 100MHz). Sync with the Mode Lock Oscillator of a laser, or phase lock multiple units with one clock.

    Flexible Gating Options

    The Model 577 is packed with gating options for almost any setup. You may gate with a channel or on any input. You may gate individual channels or gate all. Gate immediately (output inhibit) or gate after a pulse (pulse inhibit).

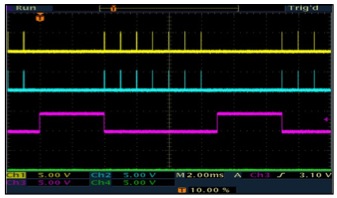

    gate image


    External Trigger Options
    Select channels for internal / external triggering, or free-run. Triggered channels have flexible output choices: single pulse, burst at its clock rate, continuous pulse train or a series of on/off pulses (duty cycle).

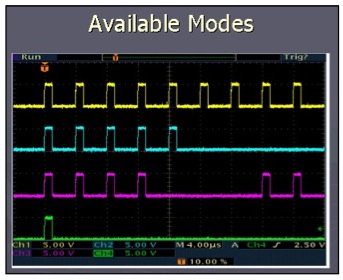

    Available Modes


    Individual Rates

    Each channel can have individual channel rates (either To or any of the other channels...).


    Forgot to save your settings? The Model 577 stores your setup configurations while powering down. Recall is automatic on power-up.

    Dual Input Panel Connectors

    The Model 577 offers two inputs for triggering or gating. User may specify electrical or optical input signals, and configure any trigger/gate combination. Use Trigger #2 to disable a triggered pulse train.



    Front Panel High Voltage

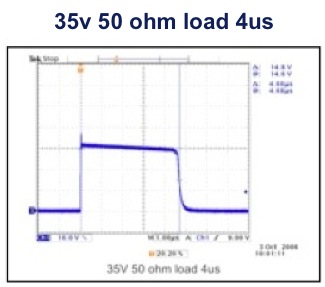

    Our modular architecture allows us to offer expanded functionality on user-selected front panel outputs. We offer a front panel High Voltage option ( adjustable from 35V, 200 mV steps) on 2, 4, 6 or all 8 channels.

    50 ohm


    Front Panel Optical

    Many applications benefit from optical signals. For noisy environments, or communications applications, we offer an LED output stage at the front panel. This modular option can be configured for 2, 4, 6 or 8 outputs at 820nm or 1300nm.

    Combined Output Types

    The outputs are configured in modules and output types are combined in pairs. Thus one may select optical, standard electrical or high voltage electrical in pairs for their instrument. For example, a 8 channel unit may have optical, standard electrical and high voltage outputs all on one instrument. Custom or additional output modules may be added as the need arises. See our handy Order Chart for all option configurations.

    Field Programmability

    The instrument can now have functions upgraded in the field, such as a special or custom feature upgrade via a fully programmable FPGA.

    Field Programmability

    Customer Output Modes

    Custom Modules such as the TZ-50 give users an expand list of capabilities with the Model 577. One example is our TZ-50 option, which allows customers a TTL signal into 50 ohms expanded.

    Negative Delay

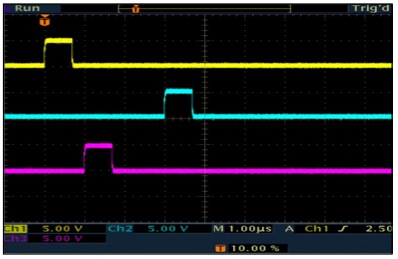

    Use the handy negative delay feature to reference one channel with respect to another channel in positive or negative time increments. By allowing a channel to reference another channel as its trigger, you can synchronize the channels with respect to each other.


    Note that Negative Delay cannot trigger a channel before your initial trigger. It is intended to compliment the channel referencing option.

    NEW AT45 High Voltage Options


     45V 50 Ohm

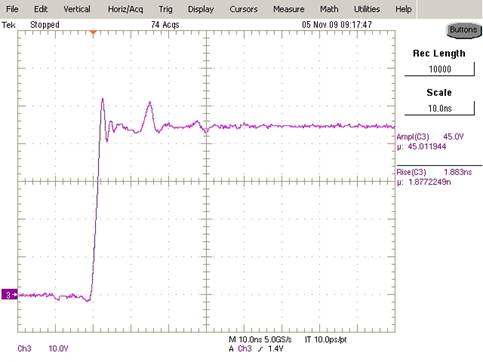

    45V Rise, 50 Ohm, 10nS / Div

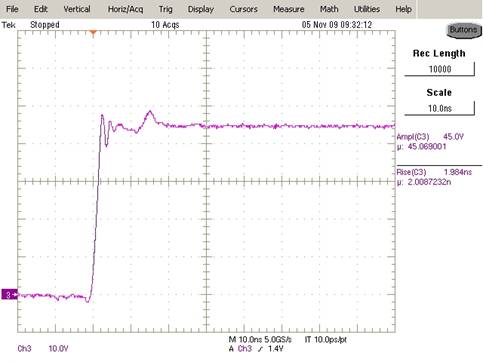

    45V Rise Hi Z, 10nS / Div

    ***Due to the power consumption and heat restrictions, a maximum of four AT45 channels can be added on a single unit***
