Ultracapacitors from LS Cable

Ultra-capacitors are next-generation core energy storage devices used for energy-efficient vehicles and industrial systems. They overcome both the low energy density of conventional capacitors and also the low output of secondary batteries. They can be used in a wide range of applications where batteries are inappropriate, since they have a wide operation range (-40degC to +70degC). And unlike batteries, ultra-capacitors have great long-term reliability and no maintenance issues.

LS Cable Ultracapacitors, with an impressive energy density of 5.19J/kg, are available from 100F to 3000F and are ideal for:


         auxiliary power systems for regenerative braking of HEV and railroads

         providing instantaneous power compensation of precise devices

         providing peak power for heavy machinery

         emergency power for wind power generation

         energy storage for solar power generation system

         output load compensation for fuel cell batteries

         high-reliability power military and aerospace applications

         enhanced operation of office automation machines

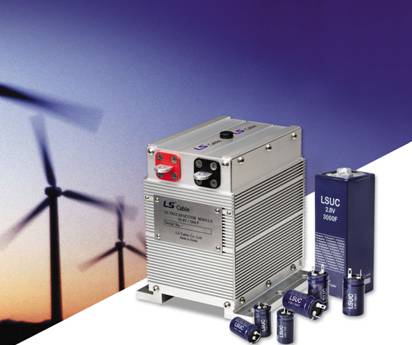

In addition to individual capacitors, LS Cable specializes in making complete custom ultracapacitor modules with associated electronics for installation in hybrid vehicles, wind-power systems, medical instruments, etc.

   Cell Lineup

High Voltage Series High Voltage Series



Capacitance

Design

Rated Voltage

ESR(DC)

Dimension

100 F

Snap-in

2.8 V

11 mΩ

Φ22 * L45 mm

120 F

Snap-in

2.8 V

9 mΩ

Φ25 * L45 mm

350 F

Snap-in

2.8 V

3.5 mΩ

Φ35 * L61 mm

3,000 F

Prismatic

2.8 V

0.5 mΩ

W55mm*D55mm*H155mm



  Modules

LS Ultracapacitor modules provide leading solutions for high voltage and current applications by connecting 3000F ultracapacitor cells in series. Higher voltage and capacitance module can be built simply by connecting modules.

Low internal resistance and high working voltage of the module maximize its available energy along with maintenance-free, high reliability and wide operating temperature.

LS ultracapacitor ModuleLS ultracapacitor Module

Item \ Type

6 Series

12 Series

18 Series

24 Series

30 Series

Rated Capacitance (F)

500

250

166

125

100

Max. Voltage (V)

16.8

33.6

50.4

67.2

84

DC ESR (mΩ)

3

6

9

12

15

Dimension-W (mm)

130

130

130

130

130

Dimension-D (mm)

180

355

530

700

870

Dimension-H (mm)

220

220

220

220

220









Please contact a Saelig Company representative to discuss your ultracapacitor needs.







Click below to view data sheets:



LSUC_Module.pdf

Ultracapacitor_ANSeries.pdf

Ultracapacitor_HighVoltageSeries_100F.pdf

Ultracapacitor_HighVoltageSeries_3000F.pdf

Ultracapacitor_HighVoltageSeries_350F.pdf

Ultracapacitor-Brochure_2007.pdf
