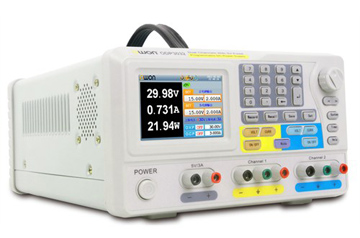

ODP3032 Programmable 3-Ch 195W Power Supply
The ODP3032 is a high-performance, programmable three-channel linear DC power supply. It features dual independent outputs with separate controls and one fixed 5V/3A supply for up to 195W total power with an output resolution of 1mV/1mA. ODP3032 offers outstanding line regulation and low ripple noise, with standard PC interfaces to meet diverse test applications.
Four operating modes are provided for the two variable outputs: independent (0~30V/0~3A), parallel (0~30V/0~6A), series (0~60V/0~3A), and plus-minus (-30V ~ +30V/0~3A). All three channels are isolated, and a 3.9” high-resolution (480 x320 pixels) TFT LCD color display makes using the advanced features easy to use. Over-voltage and over-current are configurable for load protection, and up to 30 groups of preset system configurations can be stored internally. Up to 100 groups of pre-stored timed voltage profiles can be used to generate arbitrary waveforms for voltage test cycle profiles. Serial USB and RS232 interfaces are provided for remote control of the power supply, or remote display of the screen information. The power supply is housed in a sturdy, compact 17 ¾” x 8” x 11 ¾” case.
