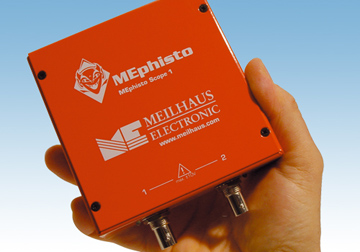

ME-UM203-T 7-in1 Mephisto Oscilloscope/Data Logger

7 measurement instruments in one!

This multifunctional instrument includes a 16-bit digital storage oscilloscope, a spectrum analyzer with FFT,  volt meter,  logic analyzer,  data logger and  digital switchbox with 24 I/O lines. The instrument has a very robust metal housing: It is a device you can rely on - even in rough, mobile applications (for example in maintenance, service and education). With its low power consumption, the MEphisto is the ideal solution for mobile applications with laptop PCs.  A comprehensive "help" file is included within the application software.

Highlights

• Oscilloscope: 2 channels, 1 MS/s per channel, 16-bit 1 MHz Analog BW, Range 200 mV...20 V. Time, spectrum and XY mode.
• Volt meter: 2 channels, input range ±100 mV, ±1 V, ±10V. 16 bit. Pointer display (software). DC, AC true RMS.
• Data logger analog and digital: Up to 100 kHz.
• Logic analyzer: 16 channels, up to 100 kHz, CMOS level.
• Digital I/O switchbox: 24 TTL lines, each line programmable as input/output. Expandable with optional accessory ME-UB with relays or opto-isolation.
• Model UM203 - stand-alone data logger: Logging of analog as well as digital data on SD card. 2 GB SD memory card included. Up to 100 kS/s (depending on SD card type). The module uses the latest settings which were configured from a PC, when the module is first connected to the external power supply. Measurement/logging is started by inserting the SD card. To read out the SD card, an optional card reader is required (or use a standard card reader

Features

• Robust, compact USB connected module with 7 instruments in one.
• Additional function of the UM203: Offline/stand-alone logging. Data logging on SD memory card, independent from PC (a 2 GB SD card is included).
• UM202 doesn't require an external power supply. It is powered from the PC via USB. It has a very low power consumption which makes it an ideal solution for battery-powered laptob PCs: Ultra low power 0.85 W. UM203 is powered by a external power supply (included) in offline/stand-alone mode.
• 16-bit resolution. 1 MS/s sample rate, up to 2x 1 MS/s simultaneous sampling. Analog bandwidth 1 MHz. Value memory 256 kS.
• Solid, reliable metal housing.
• BNC connectors for reliable connectivity of standard probes.
• ±300 VDC over-voltage protection.
• Multiple trigger modes: Threshold, windows, edge, dV/dt, external, manual.
• USB 2.0 full-speed (USB 1.1 compatible). USB cable incl.
• Easy-to-use Windows software with panels for all 7 devices. Easy programming also with VEE Pro etc.
