ByteMaster Decoder Option - IIC

    ByteMaster Decoder Option - IIC

    Manufacturer: Saelig


    This product is discontinued.



    New Page 2

     Introduction

    The I2C bus (or IIC: Inter-integrated-circuit bus) is a multi-master serial computer bus invented by Philips, which is used to attach low-speed peripheral devices to a motherboard, embedded system or similar applications.  I2C uses only two bi-directional open-drain lines: Serial Data (SDA) and Serial Clock (SCL), generally pulled-up with resistors.  Typical voltages used are +5V or +3.3V, but other voltages can be used.  The most common bus speeds are 10kb/s (low-speed mode). 100kb/s (standard mode) and 400 kb/s (fast mode).  I2C is a synchronous transmission type, and the signal content includes 'Start', 'Address', 'Command', 'Data', 'Read/Write', 'ACK/NACK', and 'Stop'.

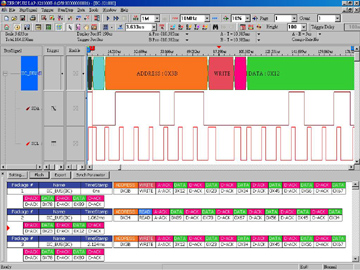

     I2C Analysis Function: with the decoding protocol analyzer inoperative, the acquired signal looks similar to what may be seen with an oscilloscope.  With the protocol analyzer function enabled, the system becomes an automatic decoding device.  The analyzer can be configured to optimize the decoding function, including data length, font coding mode, etc.



    Specification

    Bus Line SDA、SCK
    Frequency 800KHz
    Voltage 5V
    Area of project application Electronic communication



    User Manual

    Product Spec

    Software
