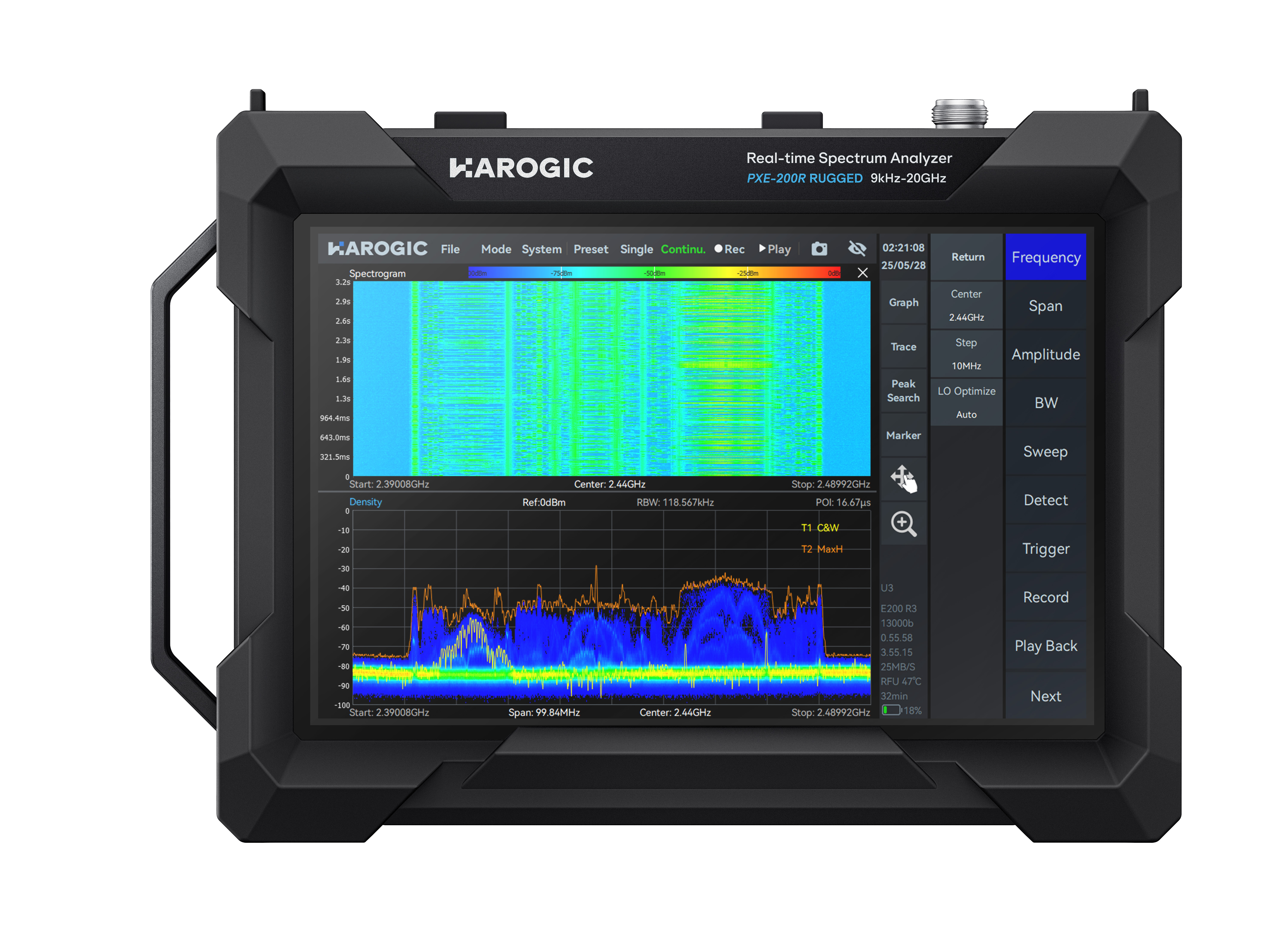

Saelig Introduces Harogic Rugged PXR Series Realtime Spectrum Analyzers
These real-time spectrum analyzers provide customers with spectrum analyzer, spectrum monitoring, RF test, and measurement functions in a rugged compact and affordable package for field use.

Fairport, NY.  Saelig Company, Inc. has introduced the Harogic PXR Series of rugged, real-time, handheld spectrum analyzers. With their IP68-rated enclosure, they ensure reliable performance in extreme conditions—dust, water, and shock. Featuring a frequency range of 9kHz to 40GHz and an analytical bandwidth of 100MHz, the PXR series handheld rugged spectrum analyzers guarantee reliable and accurate measurement anywhere. With three models in the series: PXN-400R (9kHz to 40GHz), PXE-200R (9kHz to 20GHz), and PXE-90R (9kHz to 9.5GHz) their superheterodyne receiver design and multi-segment preselected filtering offer an attractive combination of size, performance, and cost for challenging field situations. RF measurements and analysis up to 40 GHz suit 5G and emerging 6G technologies, which can now be accomplished in a robust, compact 11.25” x 8.2” x 2.3” 5.5lb instrument with its 10.1” multitouch screen.

PXR Spectrum Analyzers offer an ultra-fast spectrum scanning rate up to 500GHz/s (RBW≥300kHz), delivering standard spectrum sweep (SWP), IQ streaming (IQS), zero span (DET) and real-time analysis (RTA), phase noise, harmonics working modes, as well as digital demodulation (option) and pulse signal measurement mode (option).  Display average noise level is as low as -161 dBm/Hz, and all models are equipped with preamplifiers, achieving excellent dynamic range and phase noise level.  The series offers phase noise as low as -107 dBc/Hz at 1GHz frequency (offset at 10 kHz). The FFT engine is implemented in FPGA, and frame compression and trace detection are supported, with no missing samples between FFT frames.  USB and HDMI interfaces are included for PC interface and external displays.

Features:

• Standard Spectrum Mode - provides standard spectrogram, waterfall graph, probability density graph, phase noise and other measurement graphs. It offers measurement functions such as channel power, adjacent channel suppression, occupied bandwidth, XdB bandwidth, phase noise and IM3, peak table, and also frequency tracking.
• IQ Streaming Mode - provides time domain and spectrum view of IQ waveform, DDC function and AM/FM demodulation function, modulation depth, and modulation frequency offset.
  Power Detection Mode (Zero Span) - power time diagram (PvT) and scaling, timing trigger, level trigger, and other triggers.
• Real-time Spectrum Analysis Mode - spectrum, probability density graph, waterfall graph, and other measurement graphs, with timing trigger, level trigger, and other triggers.

• Digital Demodulation Mode Option - digital demodulation including AM FM PM CW LSB USB ASK 2FSK 4FSK BPSK QPSK 8PSK 16QAM 64QAM.

• Pulse Signal Measurement Option - automatic pulse signal measurement including pulse width, Ripple, Rise Time, Fall Time, Rise Edge, Fall Edge, PRI and Duty Cycle.

• Open API – this unique feature enables customers to customize and create their own systems based on this platform.

Made by RF specialists Harogic Technologies, the PXR Series 9.5/20/40 GHz Spectrum Analyzers are available now from their technical distributor Saelig Company, Inc. Fairport, NY.
