Visulin - Emulin Emulator / Monitoring SW Single License

    Visulin - Emulin Emulator / Monitoring SW Single License

    Manufacturer: IHR Automotive

    Call for pricing or request a quote.


    • Description

    All functions for the configuration and analysis are combined under the integrated Visulin environment. The communication with one or more emulators is effected via a high speed CAN measurement bus.


    The LIN Emulator needs to be initially prepared for the task at hand. After selection of the environment description for LIN and CAN bus description files, supplementary settings are made and periphery resources assigned.The emulator behavior is set by the creation of event-based command linking. When configuration is completed, Visulin transfers the complete config table to the emulator memory. There it can either be stored permanently in the flash ROM, or kept volatile in RAM for test purposes. After this an emulator can work fully autonomously with its configured application. All setting adjustments are managed and stored in project files.

    Real-time Monitoring

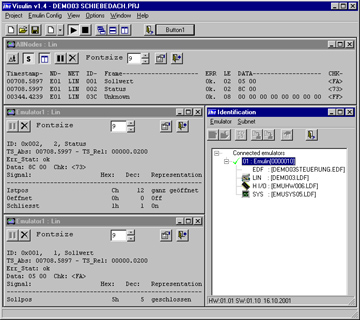

    If the emulator remains connected with the PC during operation, then Visulin can read and display the entire LIN and CAN data traffic. The data is displayed in multiple message lists together with acquired timestamps. The signal contents are decoded and listed with the correct logical and physical representation as defined within the LIN description file. Signals, control parameters and hardware resources can be written and read interactively.

    Data Storage and Processing

    Visulin processes both the files created from LIN log as well as the real-time data from the CAN measurement bus. Data streams can be filtered and then re-written to log files.

    Software Maintenance

    Visulin is under continual furtherdevelopment. More complex analysis functions and graphical visualization are currently in preparation. Visulin is an integral component of all emulator packages of the LINtools family.Updates and supplementary documents are available to all users via the internet.

    System requirements

    • Emulin, LINgate, LINlog or LIN I/O
    • Operating system Windows 98/2000/XP/W7/W8/W10*

    *On Windows 10 Systems there is a known issue on some systems regarding user privileges (administrative rights).
