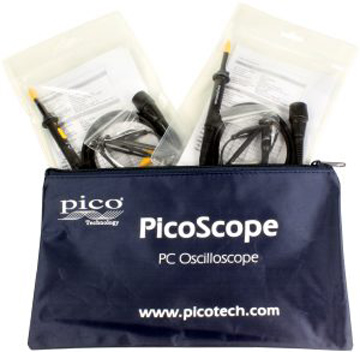

PICO 2 x MI007 60 MHz Oscilloscope probe X1/X10 with Pouch (PP787)
Manufacturer: Pico Technology
This product is discontinued.
Buy a set of two 60 MHz oscilloscope probes and you can carry and store your probes in style with a free protective case.
This high quality general purpose oscilloscope probe, has a 60 MHz bandwidth. A two position slide switch allows attenuation of either x1 or x10 to be selected.
MI007 Oscilloscope Probe Specifications
x1
x10
Attenuation
1:1
10:1
Bandwidth
DC to 15 MHz
DC to 60 MHz
Rise time:
23.3 ns
5.8 ns
Input resistance
1 MΩ
10 MΩ
Input capacitance
46 pF plus oscilloscope
Approx 15 pF
Working voltage
600 V DC incl Peak AC
(derating with frequency)
Cable length
1.2 m (approx 3 ft 11 in)
