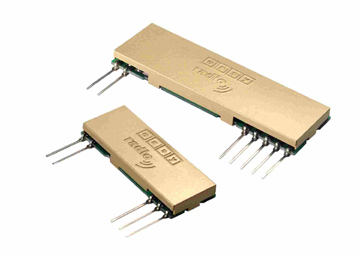

ER900TS-02 easyRadio 900Mhz Transmitter

'easy-Radio' FM transmitter for 868-870MHz European markets as well as 902-920MHz for the USA with user programmable frequency, data rate & output power

• The embedded software converts user data, in most standard formats, and transmits over air to Rx. Data is converted and fed to the host processor. This avoids the host processor taking time to constantly check for a valid signal at the Rx output
• 'easy-Radio' software means the engineer has no radio software to write which results in faster time to market
• User programmable frequency, either 868-870MHz for Europe or 902-920MHz for USA
• User programmable power output up to 10mW
• User programmable data rate from 4.8k to 76.8k bps
• ONE module only required, no mechanical changes only simple software commands
• Range in excess of 150m for 868-870MHz version at 5mW
• Range in excess of 100m at 1mW output in 902-920MHz USA applications
• See ER400TS for longer range (250m) for use in European applications
• embedded 'easy-Radio' software takes care of all encode/decode functions
• Software converts user data, in most standard formats, and transmits over air to Rx. Data is converted and fed to the host processor. This avoids the host processor taking time to constantly check for a valid signal at the Rx output
• 'easy-Radio' software means the engineer has no radio software to write which results in faster time to market
• Low power consumption Tx 23mA
• Compliant with FCC Part 15 for the USA & compliant with the R&TTE directive for Europe
• RoHS Compliant
• Size 30 x 10 x 4mms

Download this products datasheet
