Berkeley Nucleonics Model 765 Fast Rise Time Pulse Generator

    Berkeley Nucleonics Model 765 Fast Rise Time Pulse Generator

    Manufacturer: Berkeley Nucleonics

    This product is no longer available at Saelig. Please contact us for technology alternatives.

    Choose Model
    2 Channel [765-2] Add $23,500.00
    4 Channel [765-4] Add $34,500.00
    Choose Warranty Option
    2 Channel 3-Yr [765-2-WAR] Call for pricing
    4 Channel 3-Yr [765-4-WAR] Call for pricing

    • Description
    • Features
    • Specifications
    • Downloads

    The Berkeley Nucleonics 765 Fast Rise Time Pulse Generator is the first analog edge converter with the ability to provide 5V pulses with less than 70ps rising and falling edges.  Available in 2 or 4 channel versions, the 765 offers a repetition rate of up to 240MHz with a period jitter specification of under 25ps.  The unit is conveniently and easily controlled via a 7” 1024x600 capacitive touch LCD that runs Windows 10 OS.

    The Model 765's innovative hardware architecture can generate advanced pulse sequences such as double pulse or quad pulse with fully independent timing parameters. The touchscreen display and intuitive UI have been designed to simplify powerful pulse generation programming.  Signals can be generated quickly, adjustments can be made in real-time, and set-up completed with just a touch, via HDMI or USB interfaces, or from an added keyboard or mouse.  Simple built-in instrument controls and parameters allow engineers and scientists to create single or multiple pulses (dual, triple and quadruple pulse mode) in moments, with continuous, single, burst, gated, external trigger modes available.

    The Model 765 is the ideal solution for a wide range of applications requiring fast, accurate pulse edges, such as experimental physics applications, experimental colliders, laser modulation, mass spectroscopy, TDT and TDR applications, radar and sonar systems, semiconductors tests, etc.

    Model 765 Touch Interface

    The Model 765 user interface is designed for touch and it has been developed to put all the capabilities of the modern Pulse and Waveform Generators right at your fingertips.

    All instrument controls and parameters are accessed through an intuitive UI that recalls the simplicity of Tablets and modern smart phones: touch features and gestures are available to engineers and scientists to create single or multiple pulses (dual, triple and quadruple pulse mode) in few touches.

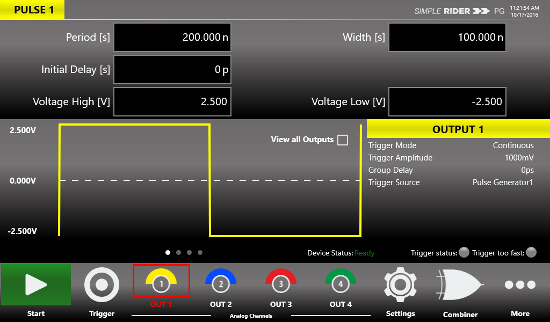

    Pulse Screen Image 1

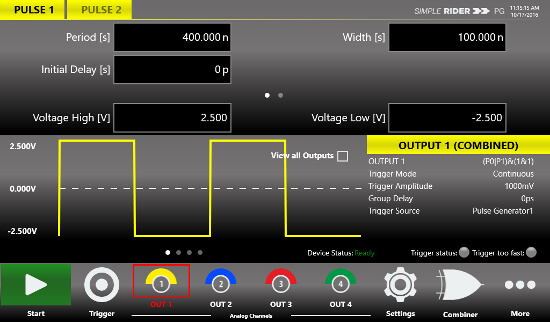

    Pulse Screen Image 2
