Home > Manufacturers > JRKerr > Snap Hub (SM-HUB6)

Share

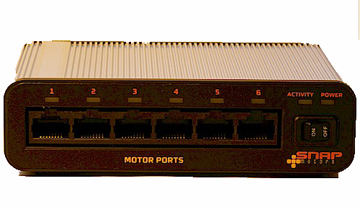

Snap Hub (SM-HUB6)

Snap Hub (SM-HUB6)

Manufacturer: JRKerr

Price: $160.00

  • a snap motor is a completely integrated motor, gearhead, encoder, amplifier and servo controller
  • up to 6 motors plug into the snap hub using standard CAT 5 cables
  • the snap hub can be programmed for stand-alone operation or used in pass-thru mode
  • use Windows software to write, download and debug embedded Motion Basic programs
  • snap motors can also be controlled directly from any computer using USB or RS232

Specifications

Motor Ports: six  RJ45  jacks
Modes: stand-alone,  ASCII  or   pass-thru
Stand-Alone Programming

embedded Motion Basic - program using provided Windows based IDE

C language - program using Microchip's ICD2 development tools (for PIC18F2610)
ASCII mode accepts commands in the form of ASCII character strings
Pass-Thru Mode native binary command packets are passed directly from the com port to the motor controllers  (for high performance applications)
Com Ports: RS232 (DB9-F) or USB (type B) - only 1 may be used at a time
Programming Port: modular jack for Microchip ICD2
Power Supply: 12v, 3 amp (included)
Dimensions: 120mm W x 35mm H x 80mm D (nominal)



Datasheet

Manufacturer Part Number: SM-HUB6
