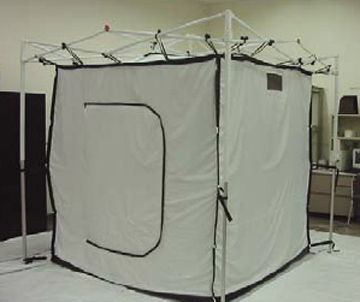

EMI Shielded Tents

Select Fabricators, Inc., SFi, uses the latest materials and processes to construct EMI (Electro-Magnetic Interference) shielding portable enclosures and tents for

• Pre-compliance Testing
• Secure Communications
• Temporary EMI Shielding
• RFID Shielding
• Computer and Cell Phone Forensics


  The enclosures are simple to set up with lightweight aluminum frames including pop-ups and semi-permanent structures. Standard sizes from table top to 20' x 40'. Other sizes can be custom designed to meet your requirements.







  SFi's EMI Shielding Portable Enclosures are constructed with durable, lightweight Silver/Copper/Nickel fabric. this flexible "thin film" offers an average 86 decibels of shielding effectiveness in the range of 30 megahertz to 20 gigahertz. Click on the graph for a larger view of the testing results.



  EMI Shielded Portable Enclosures and Tent
  STANDARD FEATURES:

  • Single or double layer of highly conductive Silver/Copper/Nickel fabric.

  • Floor of conductive fabric sandwiched between two layers of durable reinforced coated vinyl

  • One door approximately 3' wide with a 4'3" vertical opening

  • One cable sleeve

  • Frame (Easy-Up Aluminum or Custom Extruded Aluminum)

  • Durable Storage and Transportation Tent Bag

  • Assembly Instructions

  EMI Shielded Portable Enclosures and Tents
  OPTIONS

  • Custom sized doors

  • Double wall construction with insulating layer

  • Multiple door entry systems

  • LED interior perimeter lighting system

  • Stringable EMI hardened lighting system

  • RF/Shielded filter box

  • Intake and exhaust EMI shielding honeycomb panels for ventilation

  • Air conditioning

  • Window

  • Cleanroom compatible using SFI's onsite Class 1,000 Fed. Std. 209 ISO Class 6 with a Class 100 Fed. Std. 209 ISO Class 5 curtained area.

  • Durable storage and transport frame bags

  • Testing of complete enclosure/tent to ASTM 1851 / ITS G-02 combined.
