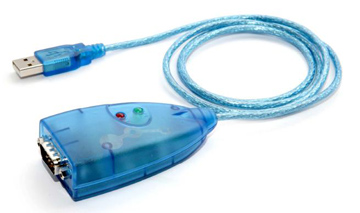

USB-COM-S-1M USB-Serial Cable 39"
Manufacturer: SystemBase
Price: $16.95
Features
- Add 1 serial port to your PC easily!
- RS232, or RS422/ RS485(Combo) Serial Interfaces
- Serial communication speed of up to 921.6Kbps Version 1.1 compatible
- Operates by bus power(Requires no external power)
- On-chip control for RS422/485 auto toggling
- Built in 15KV ESD
- Easy maintenance with TX/RX LED display
- Windows 98/CE/2000/XP/Vista/2008/7, Linux Kernel 2.4 or greater, Mac OS X, Mac OS9, Mac OS 8.6 driver support
Multi-1/USB Series enables the connection of 1 asynchronous serial devices such as terminals, modems, printers, and scanners to make a PC an economical but a powerful multi-user and multi-device system. TXD and RXD LEDs are included for the displays of data transmission. Transmission speed rises up to 921.6Kbps per port, with the help of USB 1.1 specifications.
RS232 or RS422/485 Interface Support
Multi-1/USB Series is composed of RS232 or RS422 and RS485 (Combo) interface models. Serial communication speed of up to 921.6Kbps is supported to guarantee high performance. Auto-toggling on-chip controlled signal for RS422/485 provides precise line drivers control of input/output signals and realizes a stable communication. All RS232/422/485 transceivers are equipped with 15KVESD protection, providing electrical shock protection for the product.
BUS Interface
|
Bus Spec.
|
USB version 1.1 compliant
|
Serial
|
Interface
|
RS232 or RS422 / RS485 (Combo)
|
|
No. of Ports
|
1 DB9 male
|
|
Speed
|
1200 bps to 921.6 Kbps
|
|
Signals
|
TX, RX, DTR, DSR, CTS, RTS, DCD, RI
|
|
Protection
|
15KV ESD Protection for all signals
|
|
Data Bits
|
5, 6, 7, 8
|
|
Stop Bits
|
1, 1.5, 2
|
|
Parity
|
None, Even, Odd, Space, Mark
|
|
Flow Control
|
RTS/CTS, XON/XOFF
|
Software
|
O/S
|
Win 98/CE/2000/XP/Vista/2008/7, Linux Kernel 2.4 or greater, MAC OS X, Mac OS 9, Mac OS 8.6
|
Hardware
|
Dimensions
|
Multi-1U/RS232 : 35 19 54 mm
Multi-1U/Combo: 35 19 54 mm
|
|
Weight
|
Multi-1U/RS232 : 74.2 g
Multi-1U/Combo : 74.2 g
|
|
Cable Length
|
Multi-1U/RS232 : 1m
Multi-1U/Combo : 1m
|
Environmental
|
Operating Temp
|
0 ~ 50ºC
|
|
Storage Temp
|
-20 ~ 80ºC
|
|
Humidity
|
5 ~ 95% Non-condensing
|
Approvals
|
MIC, CE, FCC, RoHS Compliant
|
